BUILT QUALITY
Built Quality

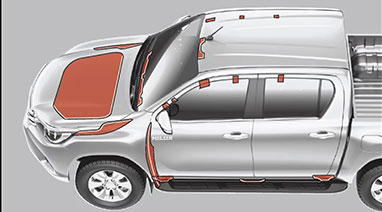

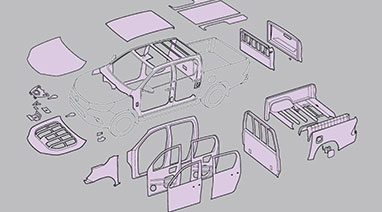

NOISE ABSORBING, NOISE INSULATING AND VIBRATION DAMPING MATERIALS

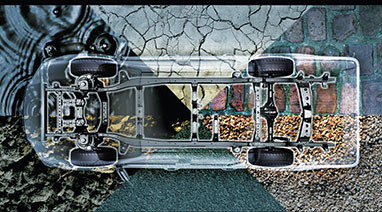

SUSPENSION
ANTI CORROSION STEEL SHEETING

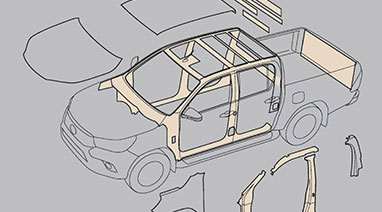

HIGH TENSILE STEEL SHEETING

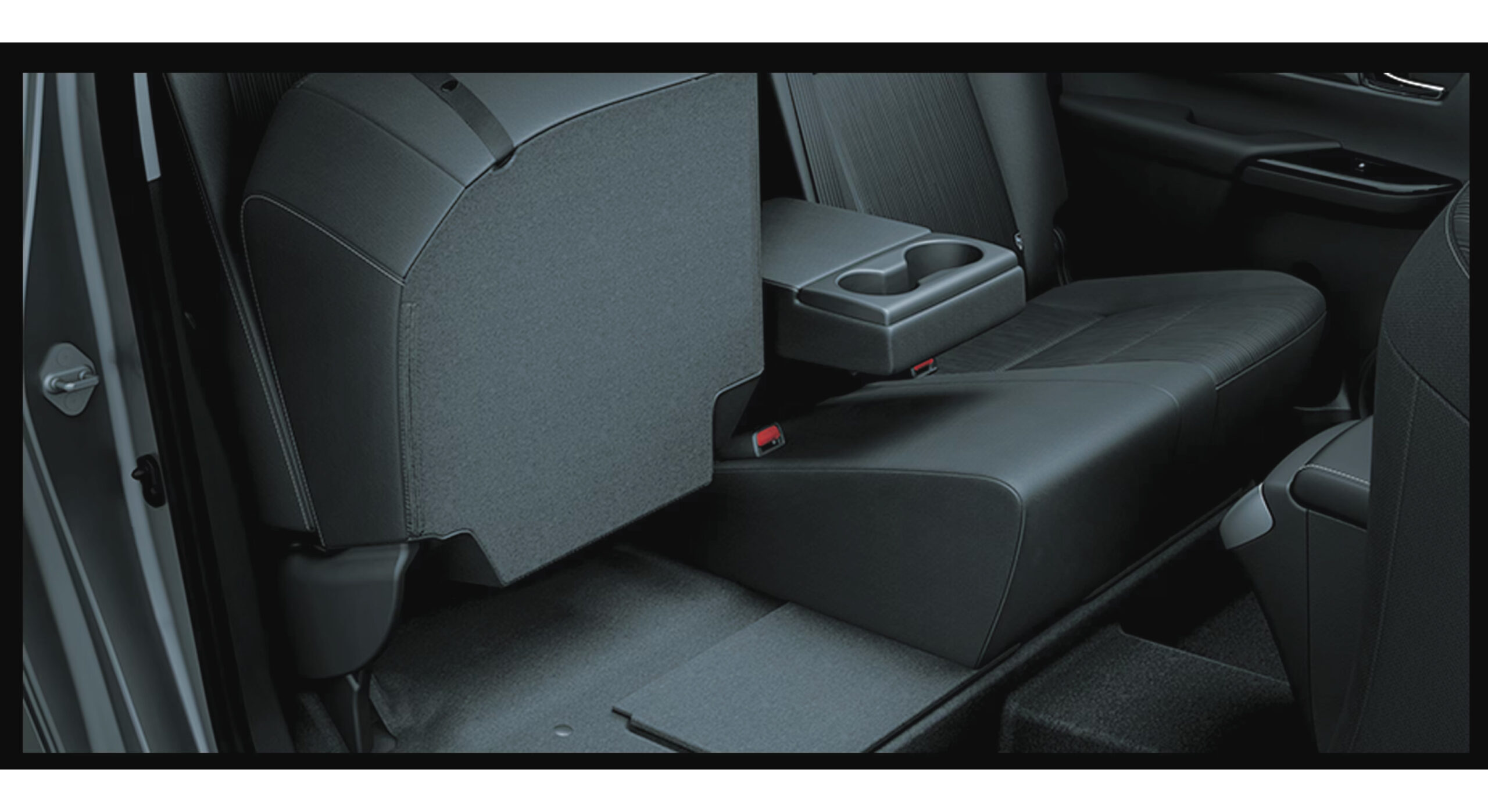

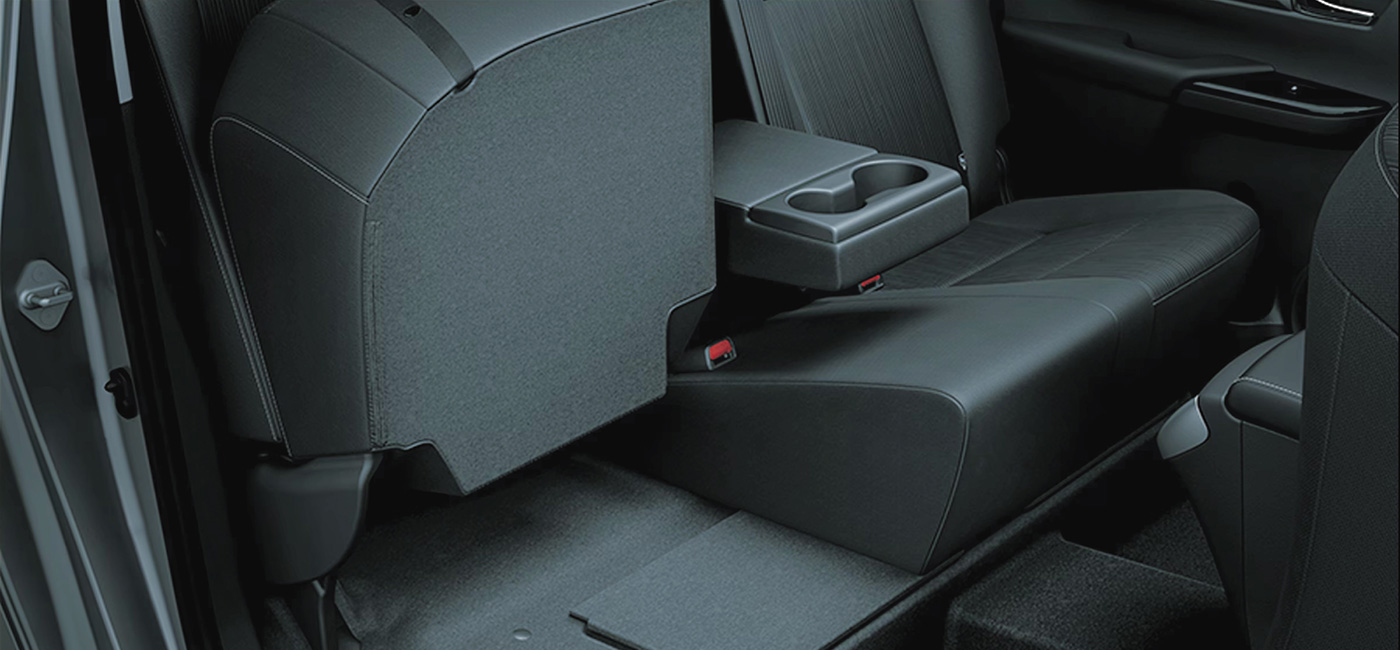

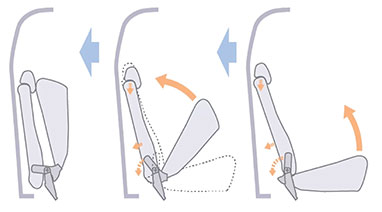

FOLDING SEATS
Interior Features
Interior Features

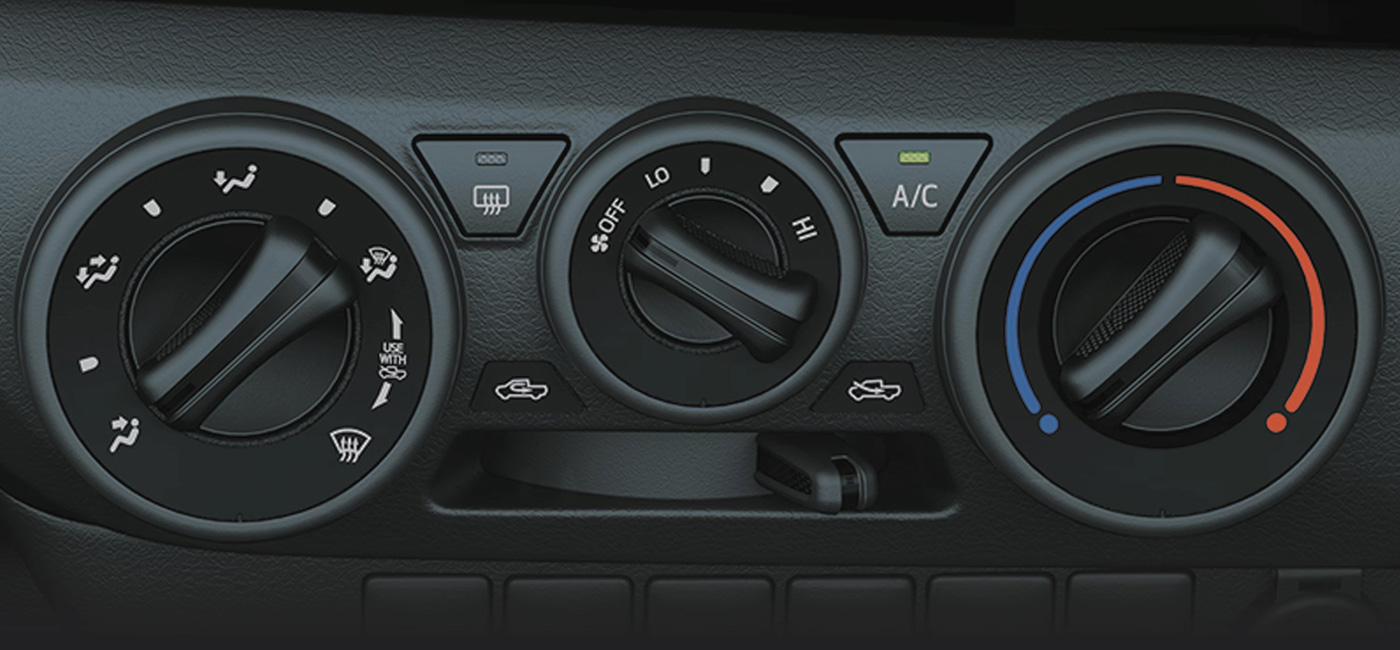

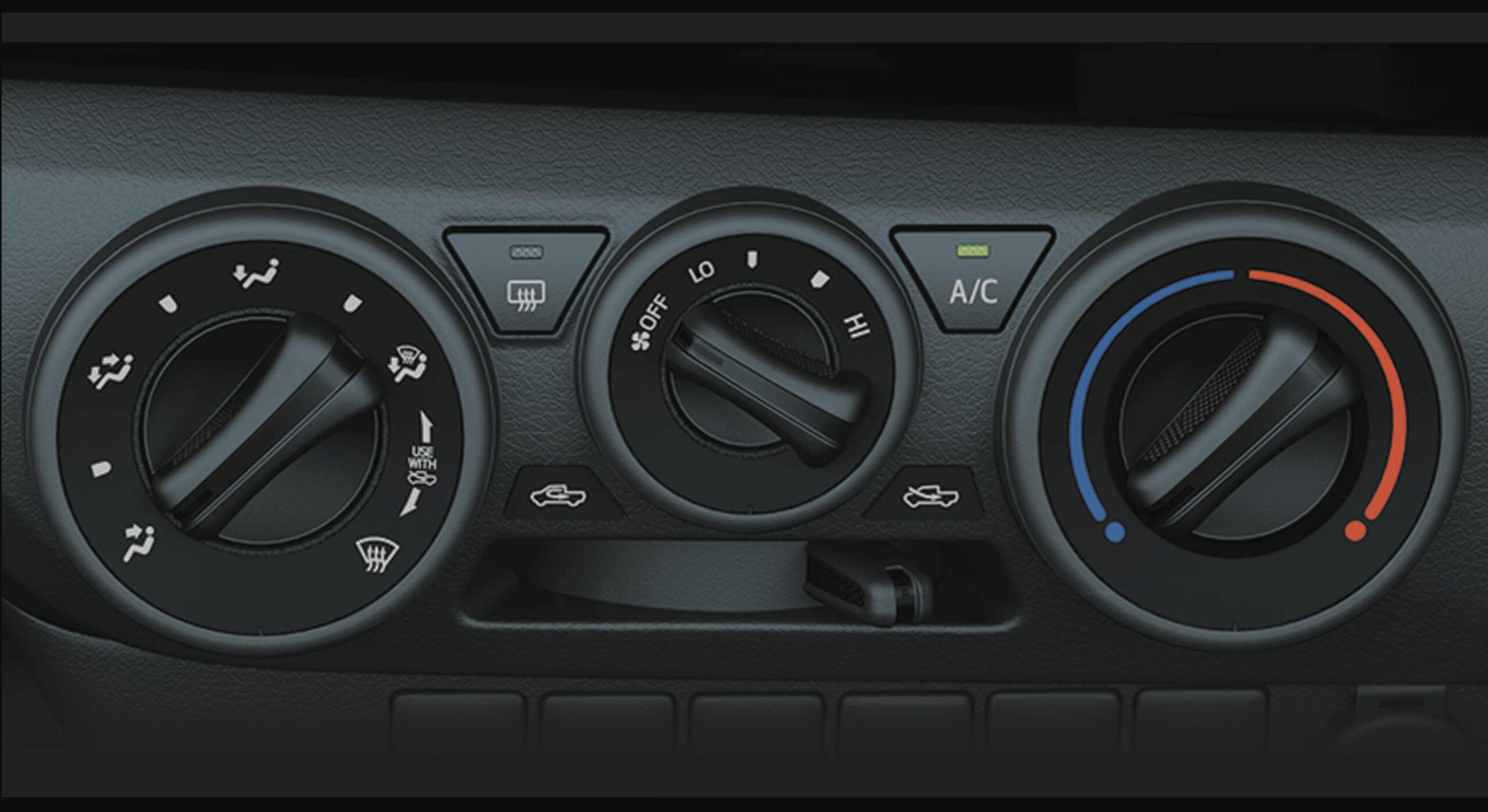

AIR CONDITIONER

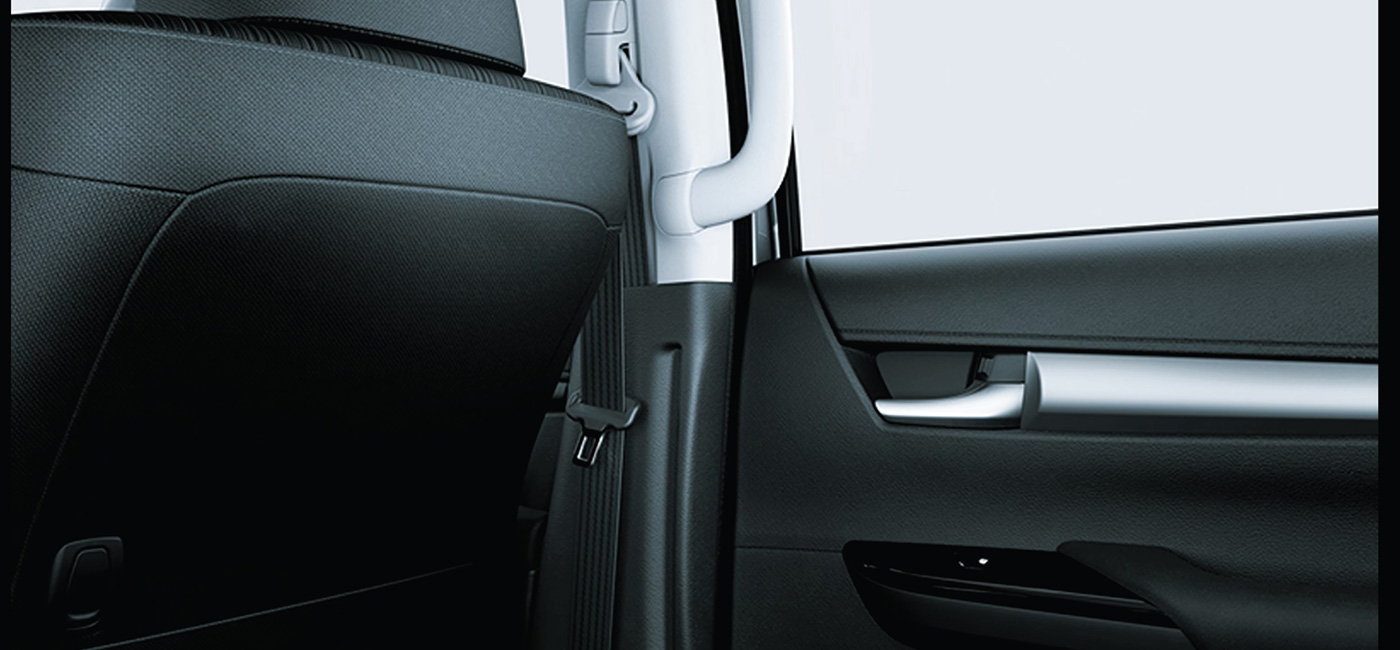

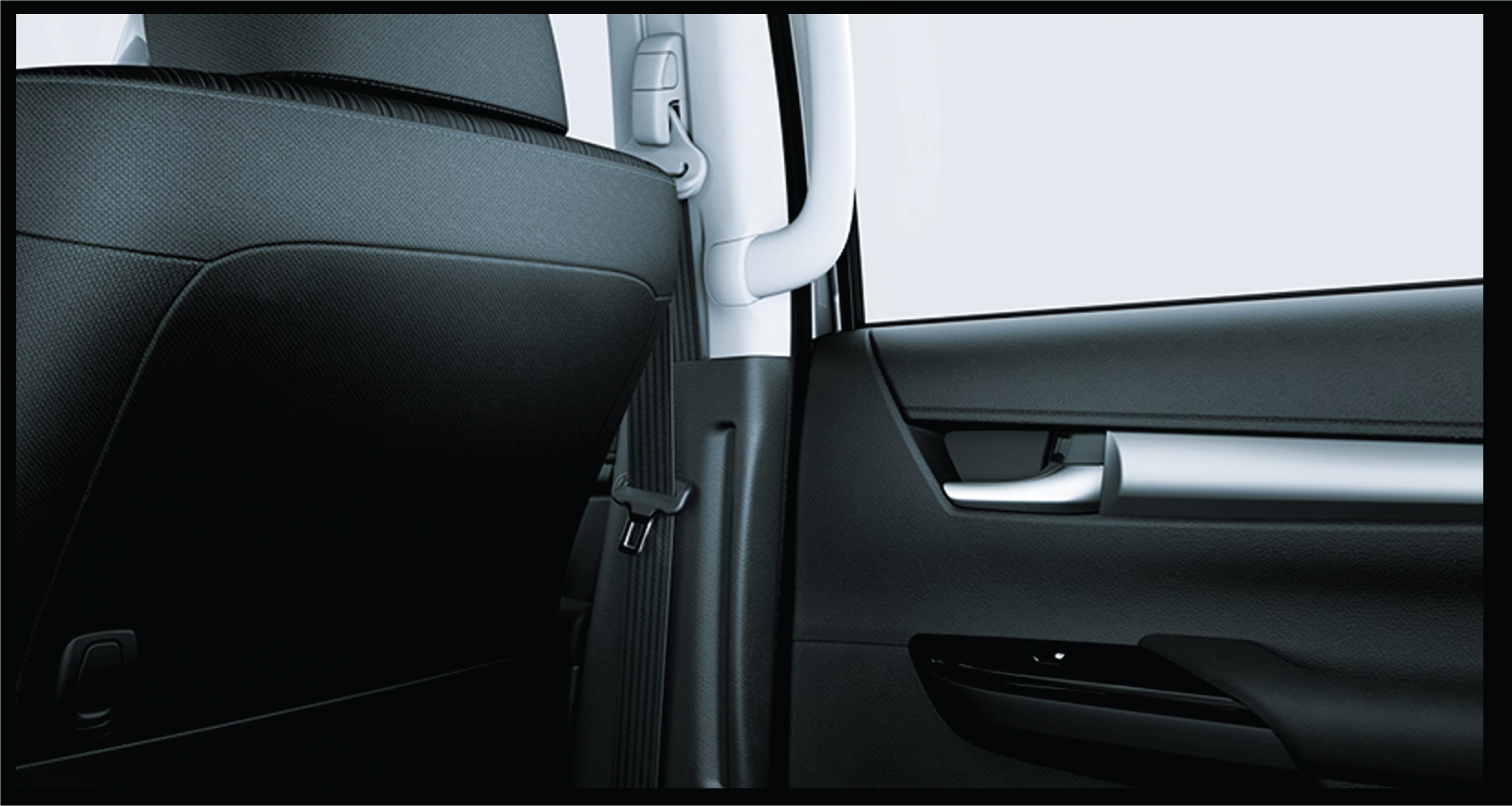

ASSIST GRIP

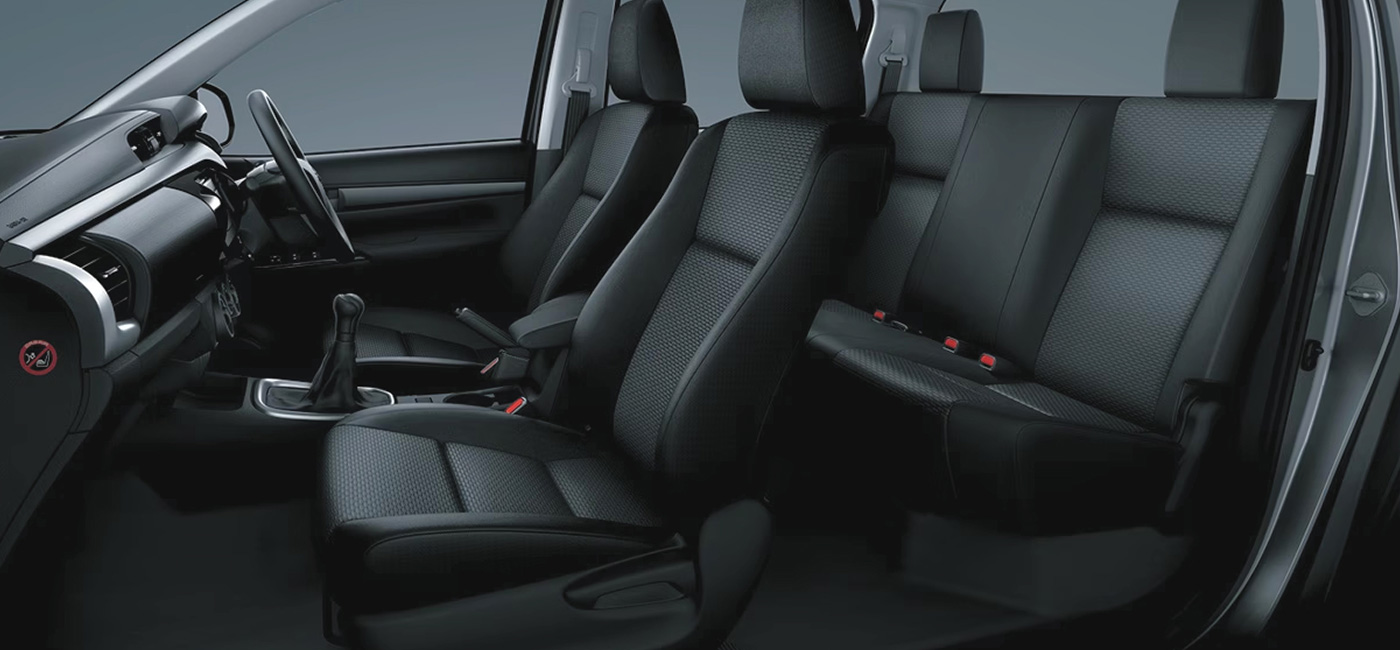

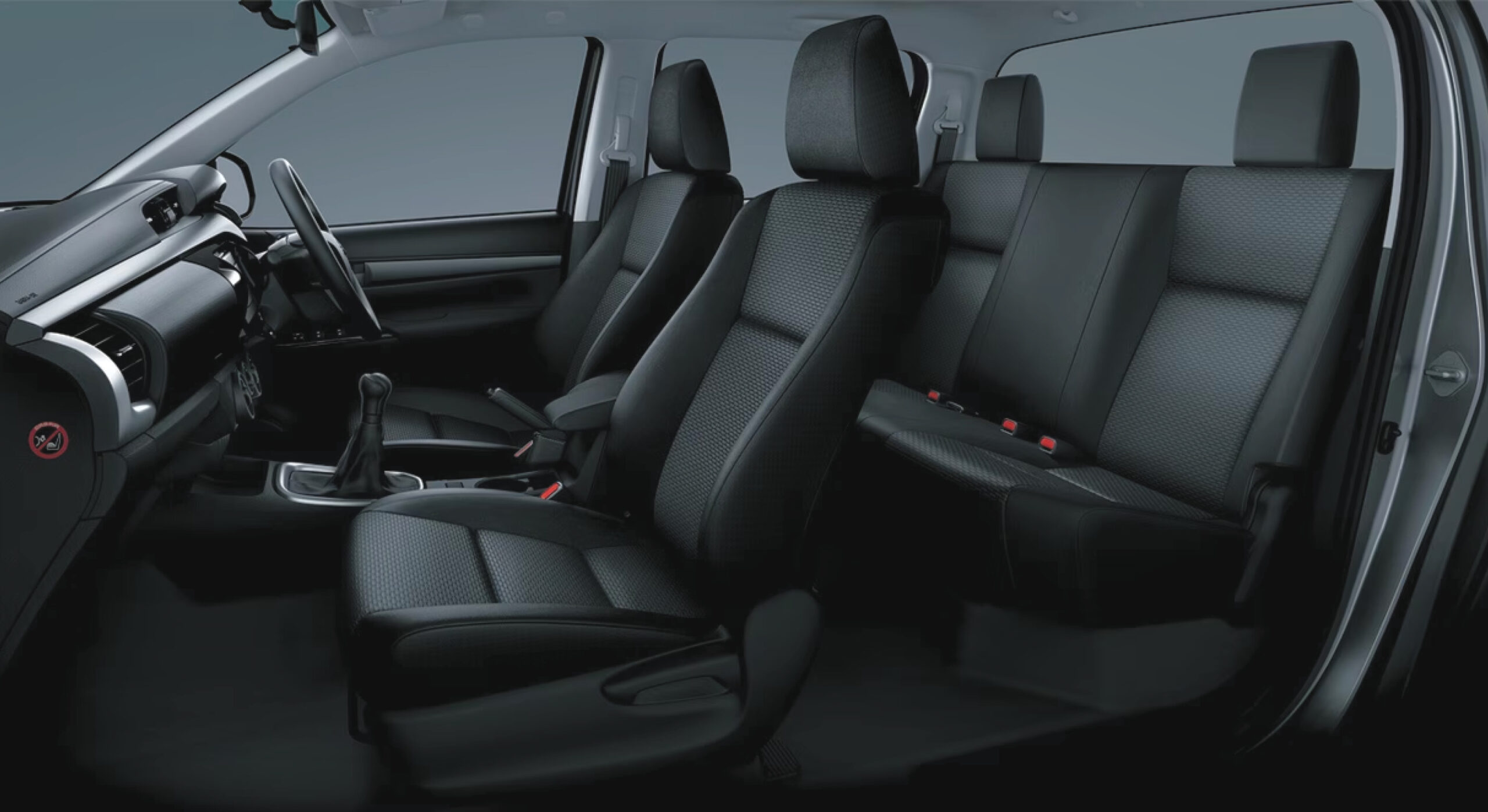

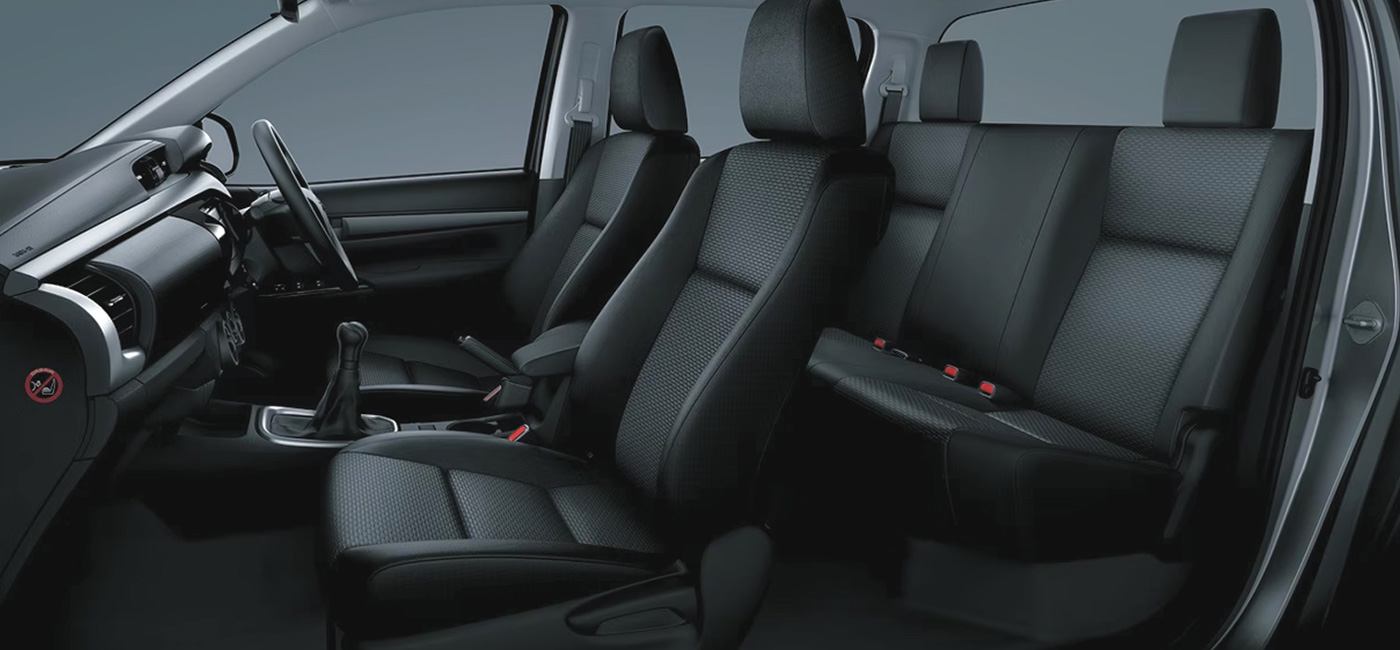

COMFORTABLE SEATS

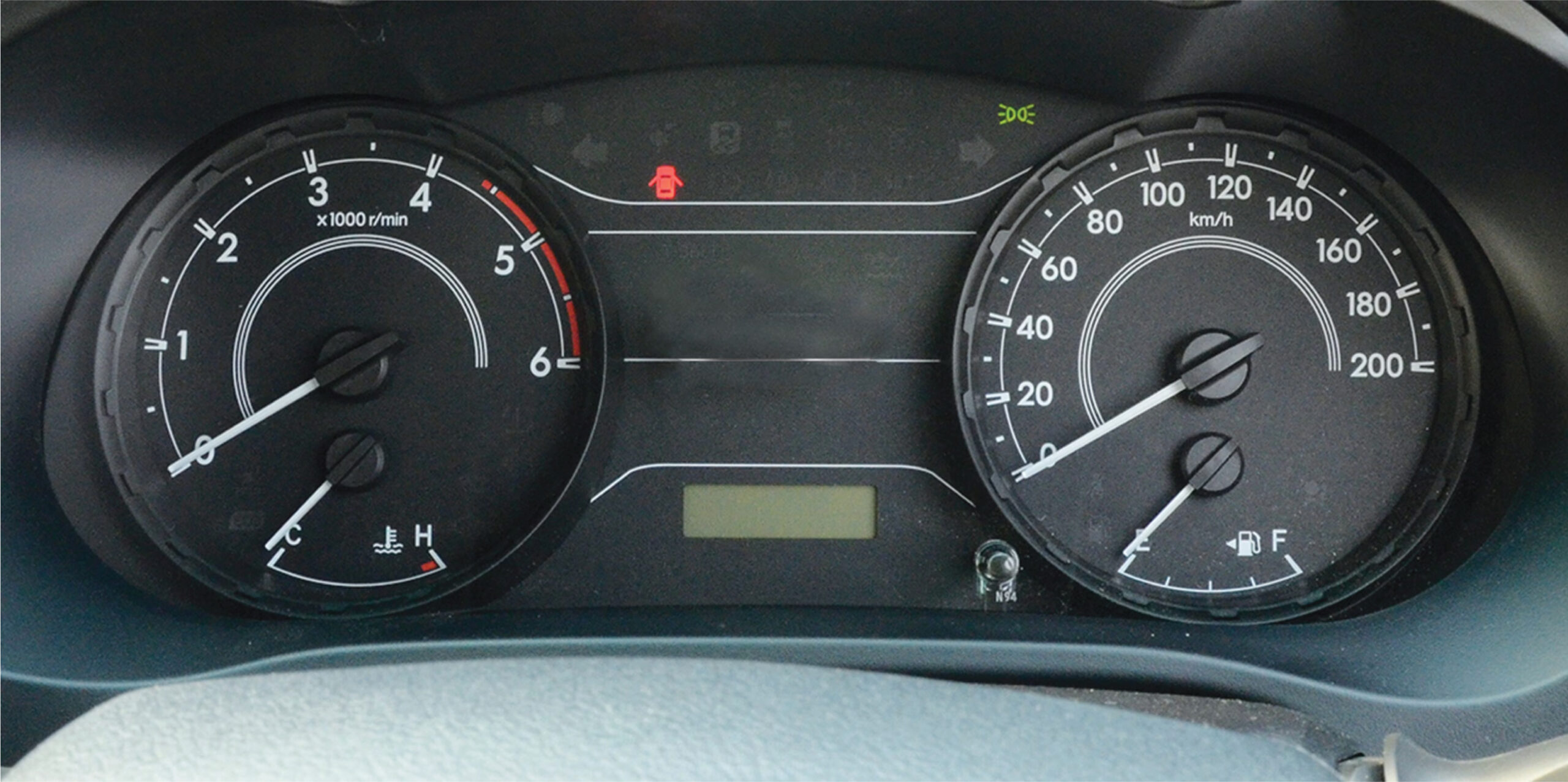

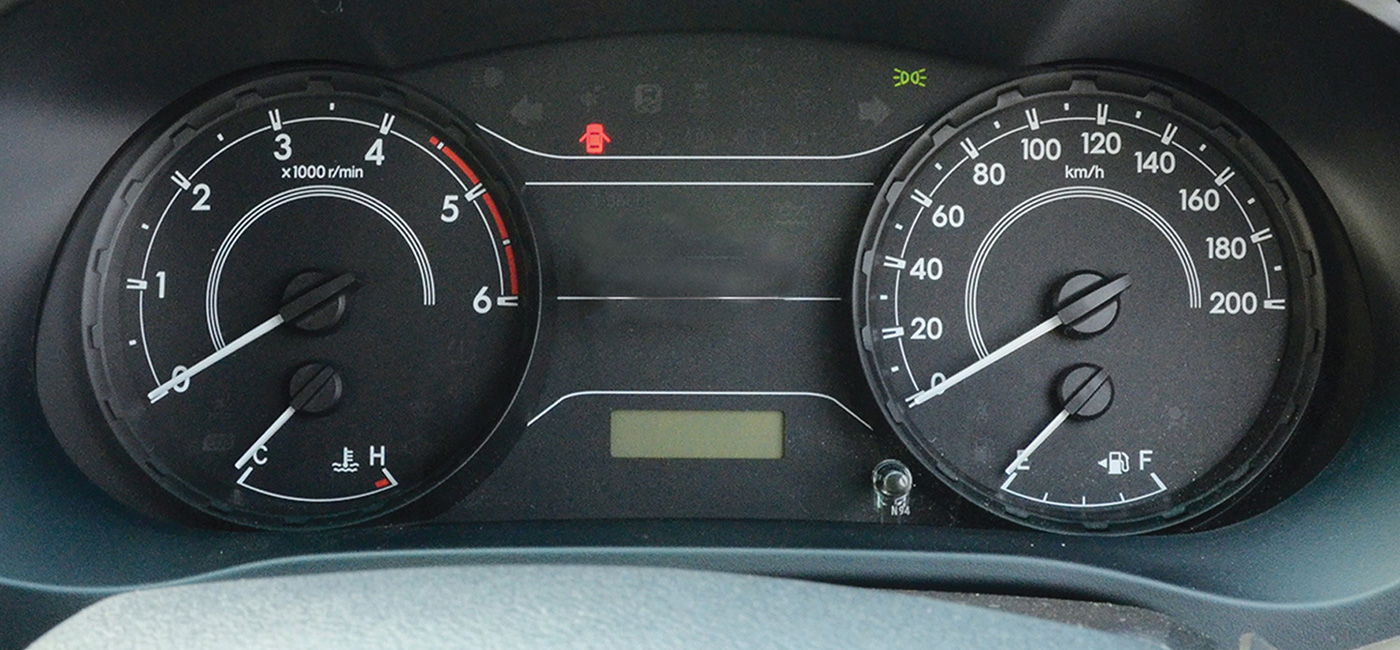

COMBINATION METERS

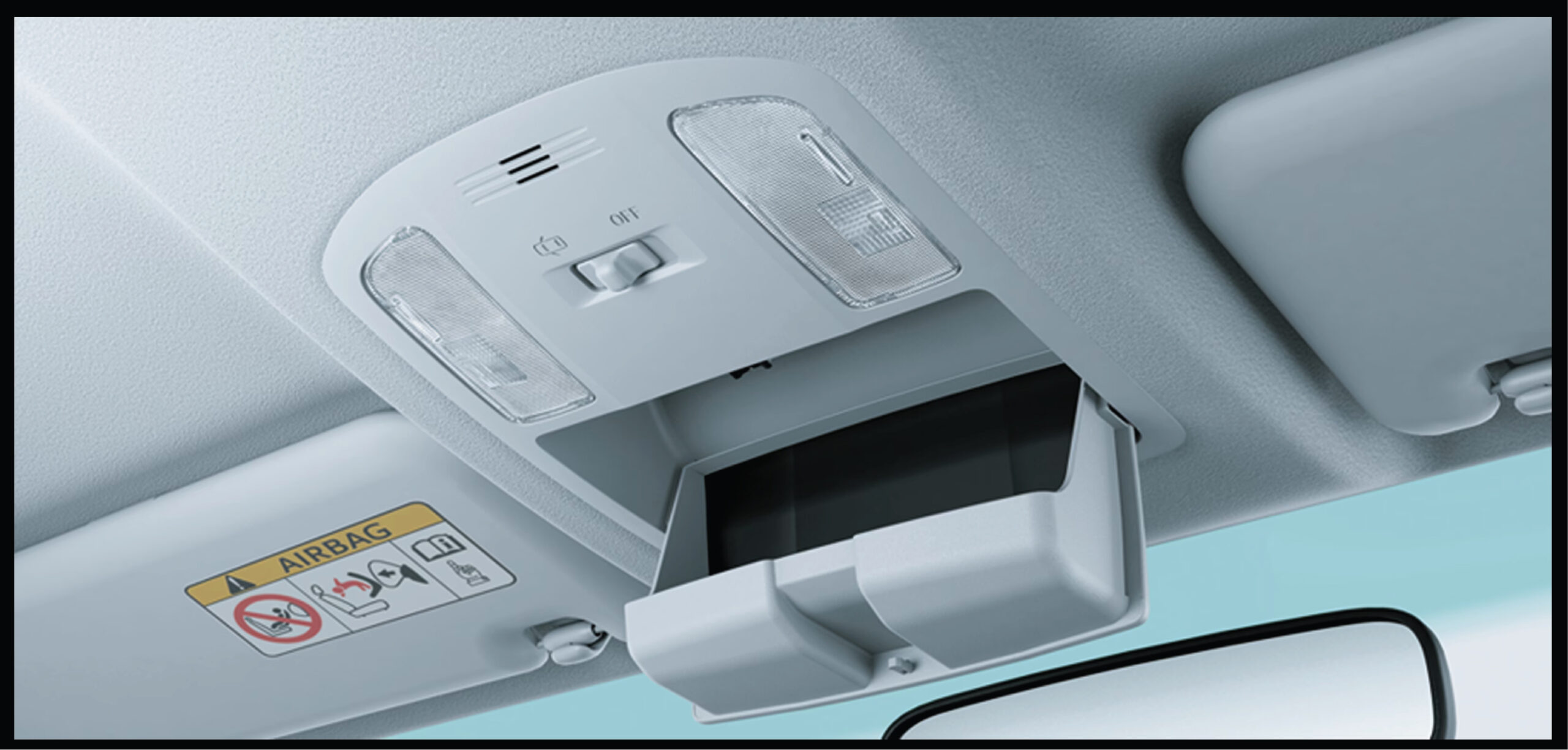

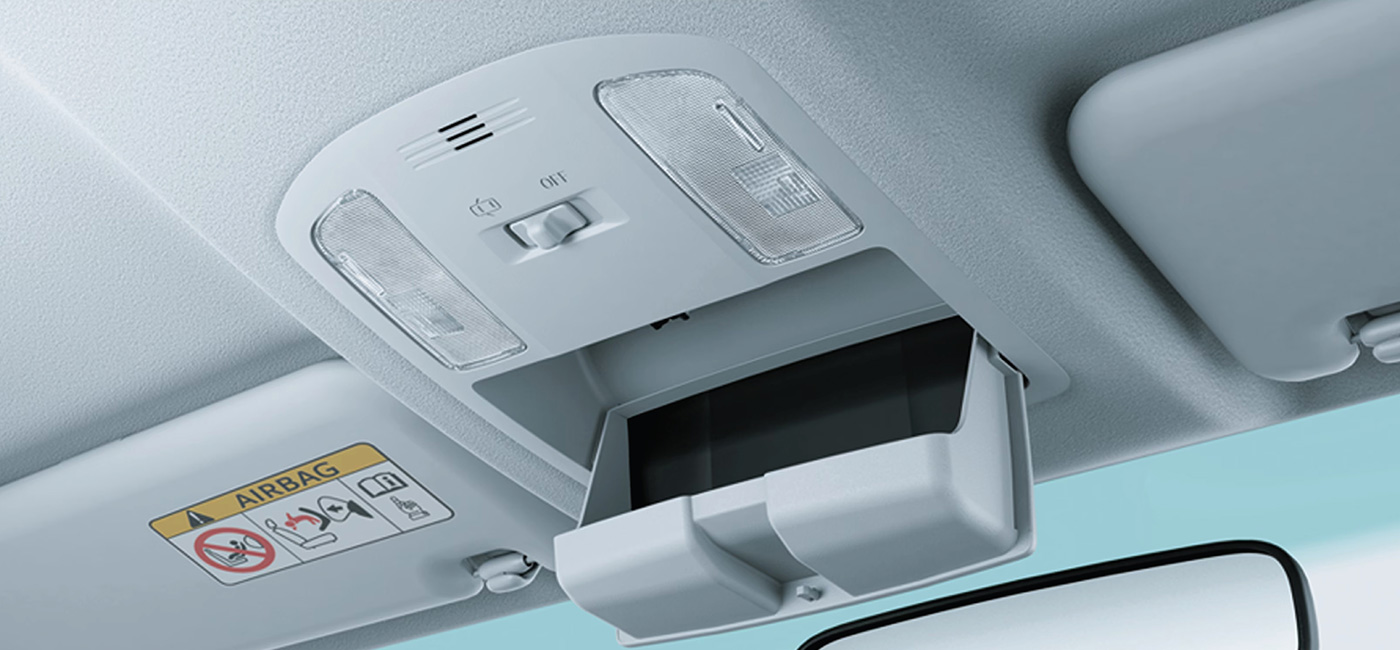

OVERHEAD CONSOLE

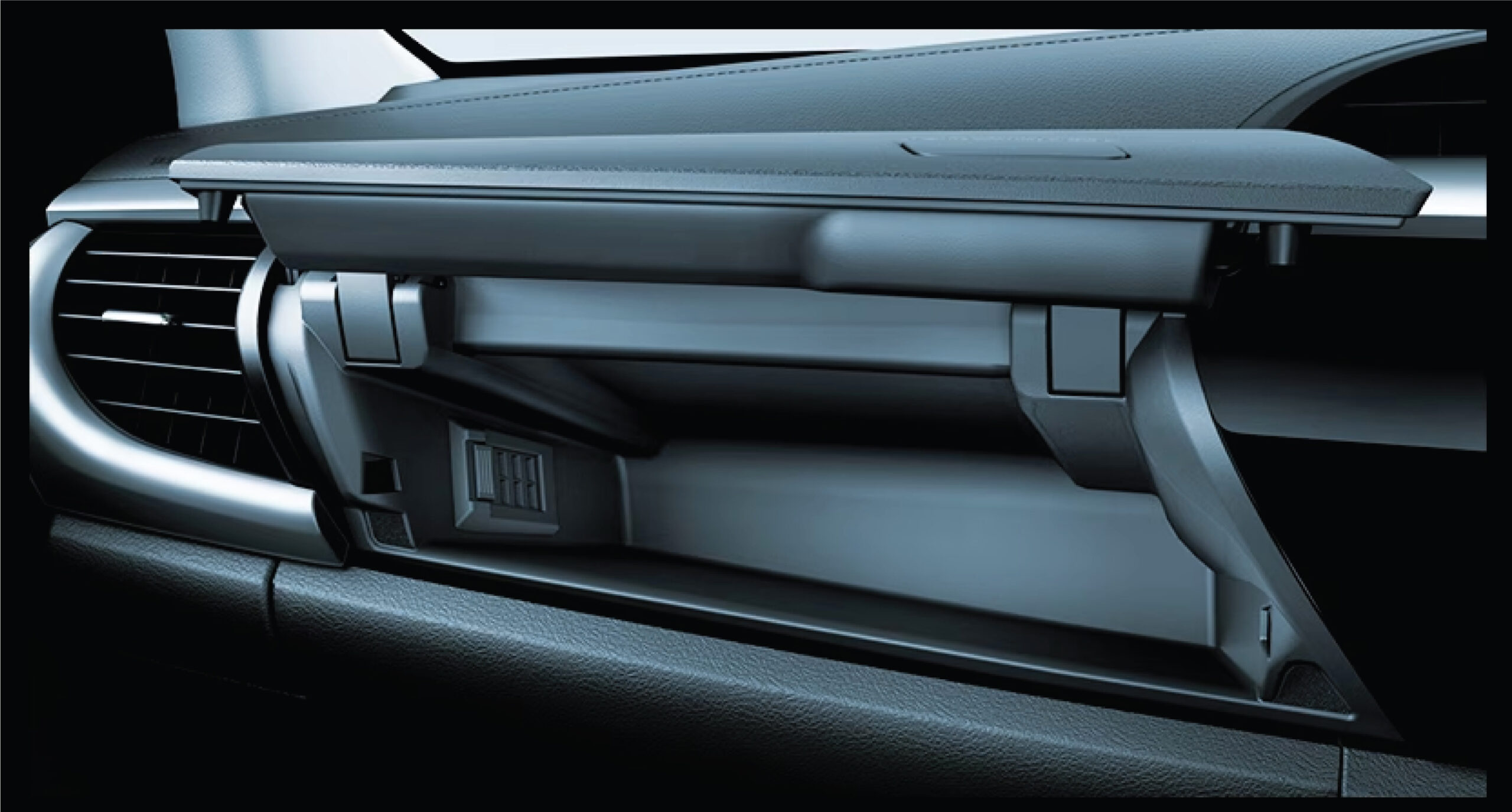

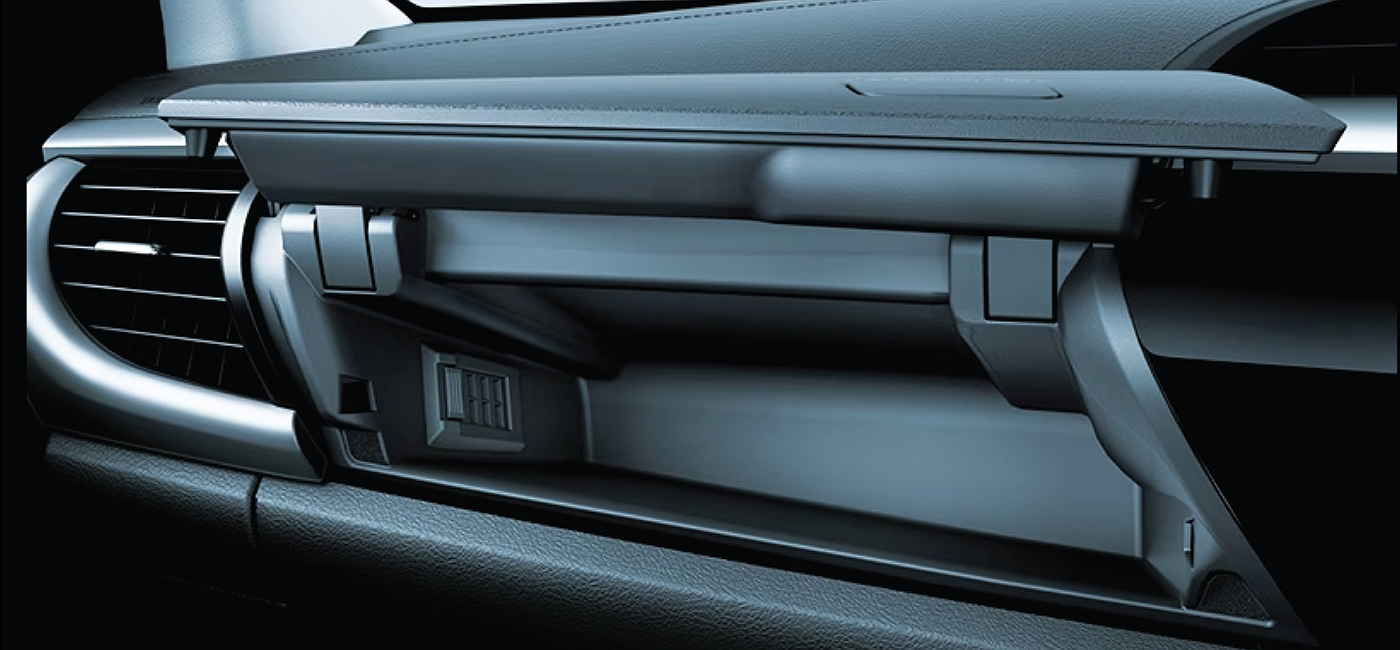

UPPER BOX
REAR CUP HOLDERS

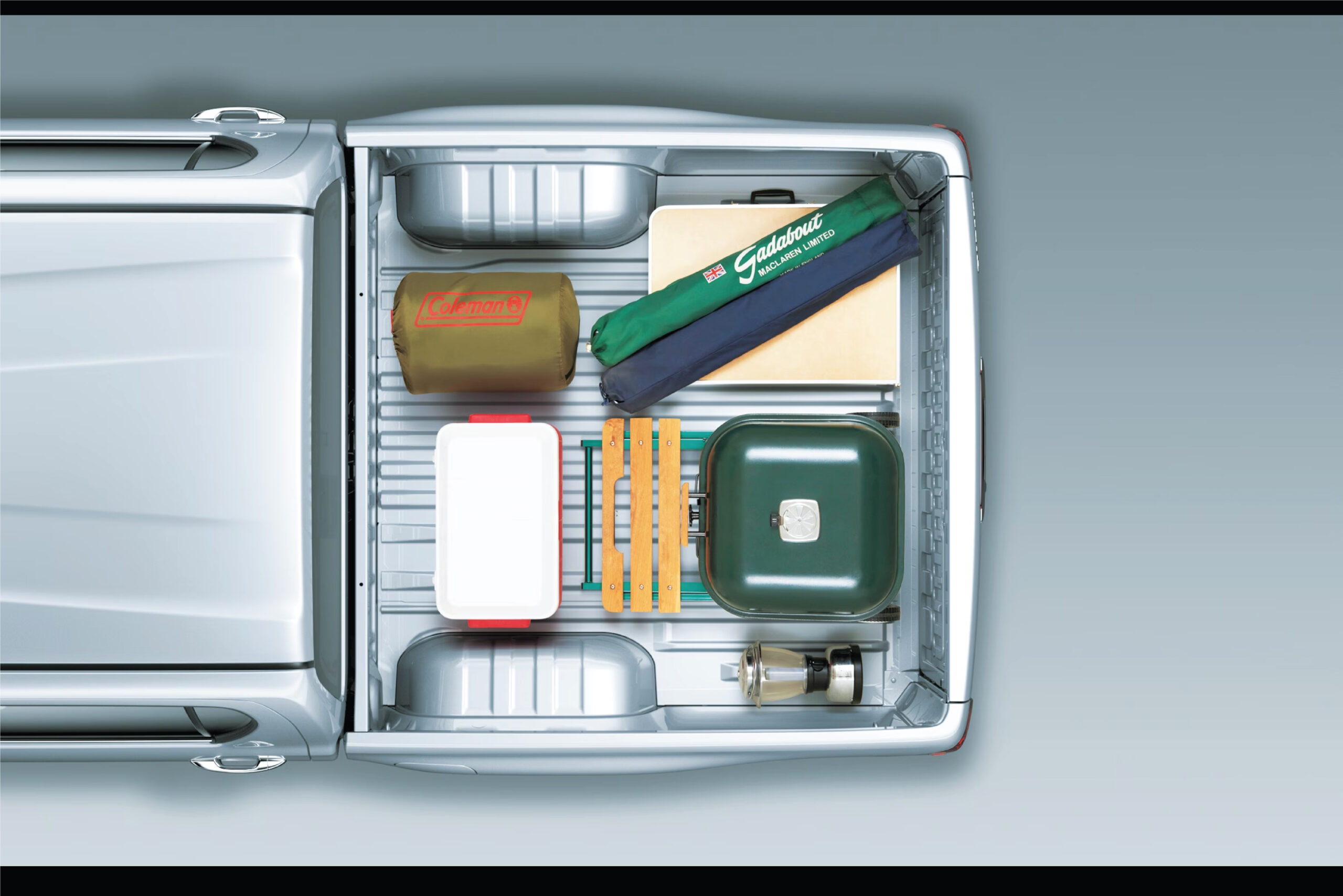

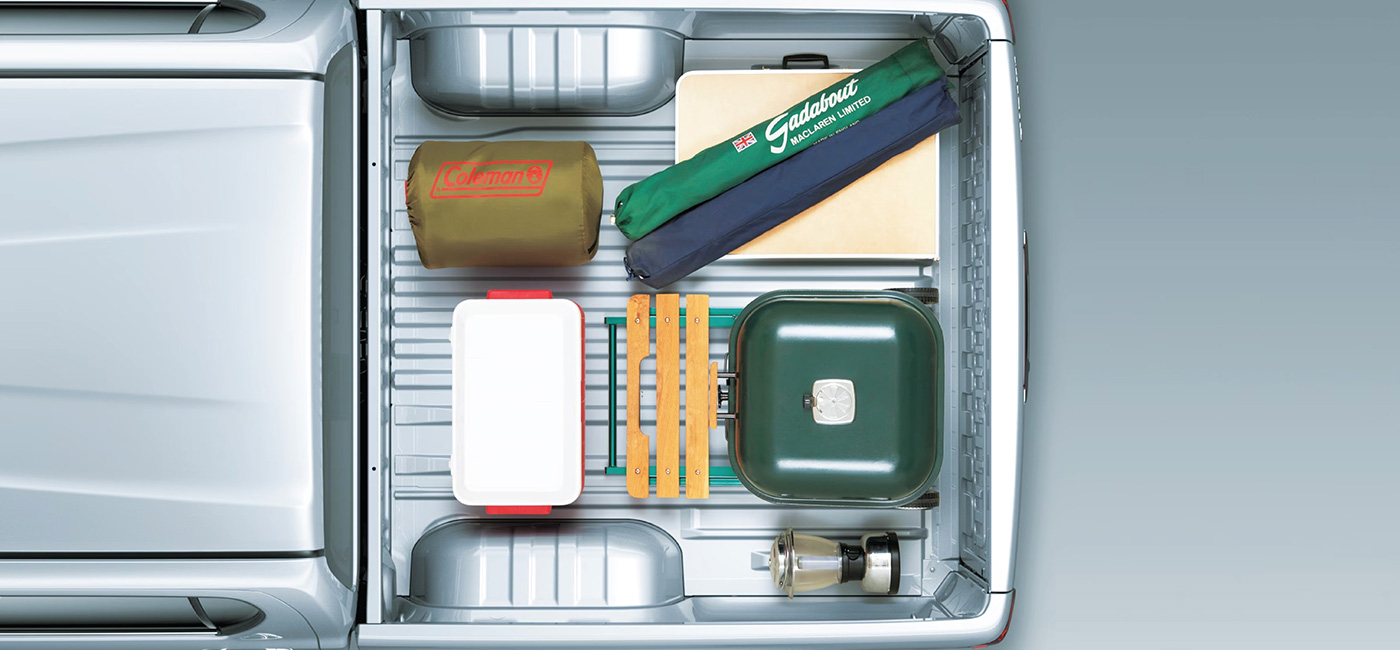

AMPLE STORAGE
LARGE HEADLAMPS
WITH REFLECTORS
REAR WINDOW

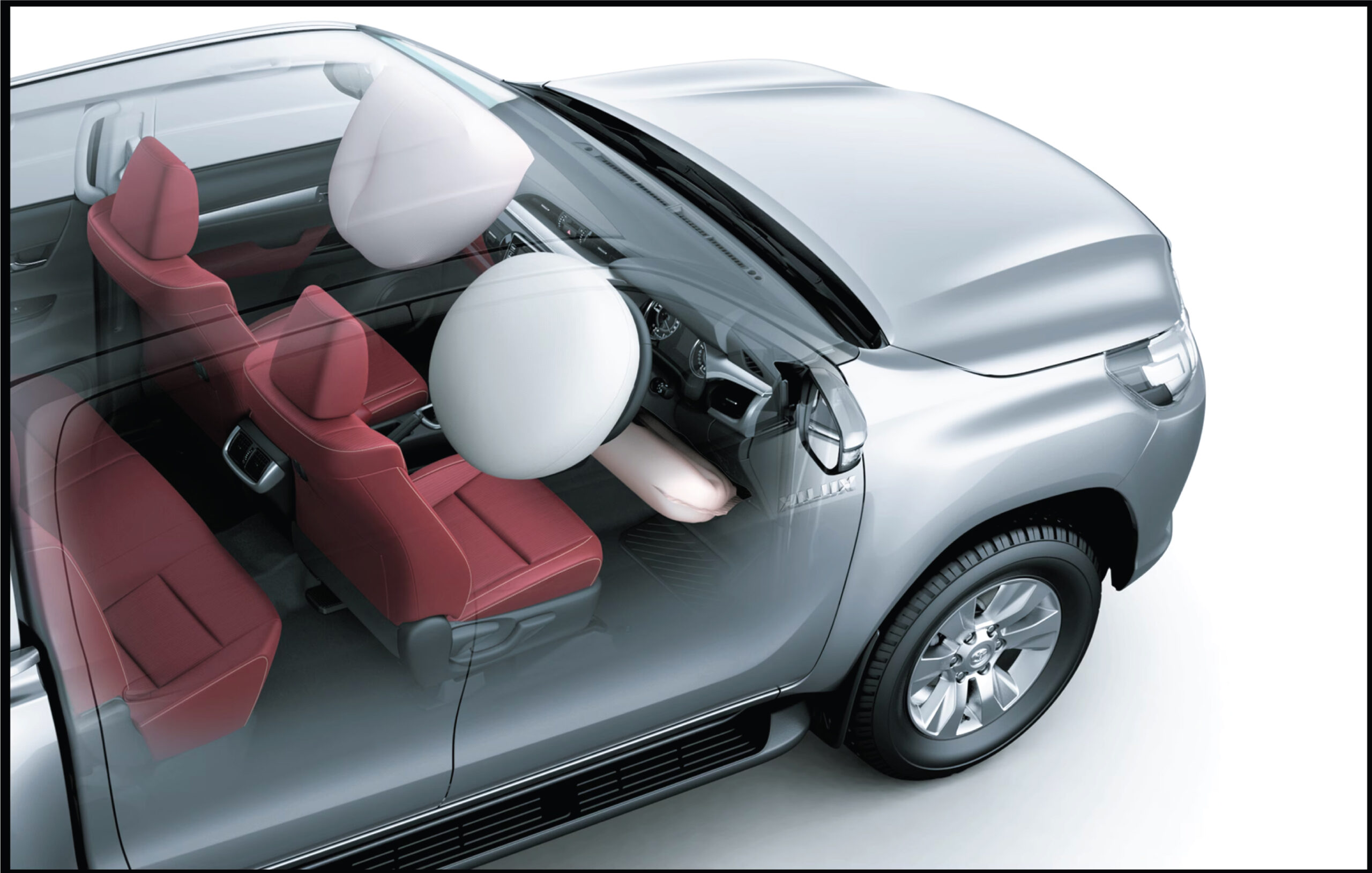

SRS AIRBAG

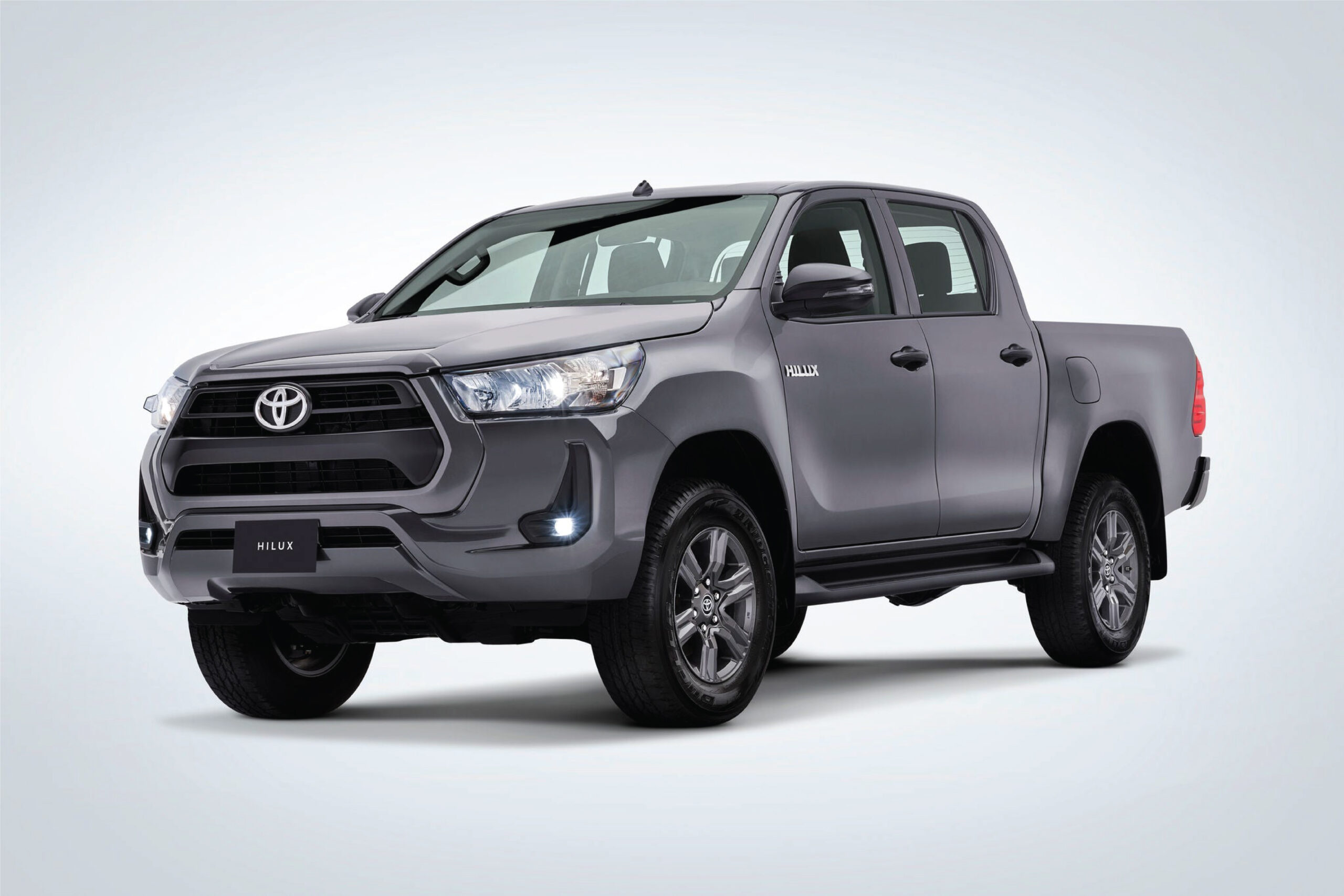

Colors
GRAY ME. (1G3)
The images and content have been sourced globally and may differ from your local specifications.
Specifications
| Dimensions & Vehicle Weights | GUN125R-DTFLX | GUN125R-DTFSX | GUN126R-DTTSX | ||
|---|---|---|---|---|---|
| Overall | Length x Widthx Height | mm | 5330 x 1885 x1815 | 5330 x 1885 x1815 | 5330 x 1885 x1815 |
| Wheel Base | mm | 3085 | 3085 | 3085 | |
| Overhang | Front/Rear | mm | 985/1255 | 985/1255 | 985/1255 |
| Interior | Length x Widthx Height | mm | 1697 x 1480 x 1170 | 1697 x 1480 x 1170 | 1697 x 1480 x 1170 |
| Gross Vehicle Weight | kg | 2910 | 2910 | 2910 | |
| Curb Weight | Min/Max | kg | 2000/2075 | 2045/2100 | 1985/2085 |
| Fuel Tank Capacity | Total | L | 80 | 80 | 80 |
| Engine | |||||
|---|---|---|---|---|---|
| Engine | Model Code | 2GD-FTV (Hi) | 2GD-FTV (Hi) | 1GD-FTV (Hi) | |
| No of Cyls & Arrangement | 4-Cyls. IN LINE | 4-Cyls. IN LINE | 4-Cyls. IN LINE | ||
| Valve Mechanism | 16-Valve DOHC | 16-Valve DOHC | 16-Valve DOHC | ||
| Displacement | m3 | 2393 | 2393 | 2755 | |
| Fuel System | Fuel Injection | Fuel Injection | Fuel Injection | ||
| Fuel Type | Diesel | Diesel | Diesel | ||
| Max. Output | kW/RPM | 110/3400 | 110/3400 | 150/3000-3400 | |
| Max. Torque | Nm/RPM(min-max) | 400/1600-2000 | 400/1600-2000 | 500/1600-2000 | |
| Performance | |||||
|---|---|---|---|---|---|
| Min. Turning Radius | Tire | m | 6.4 | 6.4 | 6.4 |
| Body | m | 6.7 | 6.7 | 6.7 | |
| Drive Train | ||||
|---|---|---|---|---|
| Transmission | Type | 6 Speed MANUAL | 6 Speed MANUAL | 6 Speed AUTOMATIC |
| Brake System | ||||
|---|---|---|---|---|
| Brake Type | Front | Ventilated disc brakewith fixed caliper 4- cylinder | Ventilated disc brakewithfixed caliper 4-cylinder | Ventilated disc brakewith fixed caliper 4-cylinder |
| Rear | Leading-TrailingDrum Brake | Leading- Trailing Drum Brake | Leading- Trailing Drum Brake | |
| Steering System | |||
|---|---|---|---|
| Power Steering Type | Hydraulic | Hydraulic | Hydraulic |
| Exterior | GUN125R-DTFLX | GUN125R-DTFSX | GUN126R-DTTSX | |
|---|---|---|---|---|
| Tire and Disc Wheel | 265/65R17ALL TERRAIN STEEL GENERAL BLACK | 265/65R17 ALL TERRAIN ALUMI (PU) | 265/65R17ALL TERRAIN STEEL GENERAL BLACK | |
| Wireless/ Smart Door Lock | With Jack KnifeKey | With Jack KnifeKey | With Jack KnifeKey | |
| Head Lamp | 4-BULB HALOGENMULTI | 4-BULB HALOGENMULTI | 4-BULB HALOGENMULTI | |
| Interior | ||||
|---|---|---|---|---|
| Steering Column | Tilt & Telesco(W/ Lock) | Tilt &Telesco (W/ Manual mechanical lock) | Tilt &Telesco (W/ Manual mechanical lock) | |
| Seating Capacity | 5 | 5 | 5 | |
| Rear Seat | D CAB 1PC CUSHION TIP UP | D CAB 1PC CUSHION TIP UP | D CAB 1PC CUSHION TIP UP | |
| Seat Material | Full LO forPick Up | Full HI for Pick Up | Full LO forPick Up | |
| Sun Visor | DRIVERS (HOLDER)+PASSENGER (PVC) | DRIVERS(HOLDER)+PASSENGER(MIR+LID) PVC | DRIVERS(HOLDER)+PASSENEGR(MIR+LID) PVC | |
| Inside Rear ViewMirror | Day &Night | Day &Night | Day &Night | |
| Room Lamp | Dome 1 Pc | Dome 1 Pc | Dome 1 Pc | |
| Air Conditioner | MANUAL | MANUAL | MANUAL | |
| Multi Information Display | WITHOUT | Large TFT | Large TFT | |
| Safety | ||||
|---|---|---|---|---|
| ABS(ANTI-LOCK BRK SYSTEM) | WITH | WITH | WITH | |
| SIDE COLLISION AIRBAG | With (Driver &Passenger) | With (Driver &Passenger), Knee for Driver | With (Driver &Passenger), Knee for Driver | |
| REAR SEAT BELT | 3P ELR*2 + 2P NR*1 | 3P ELR*2 + 2P NR*1 | 3P ELR*2 + 2P NR*1 | |
| FRONT SEAT BELT | 3P ELR*2 PRETEN FORCE LIMITER D&P | 3P ELR*2 PRETEN FORCE LIMITER D&P | 3P ELR*2 PRETEN FORCE LIMITER D&P | |
